APlusLift 12,000LB 4-Post Alignment Lift- AL-12A (HW-12S)
$ 3,110.49
$ 6,099
Industry leading 3 YEAR WARRANTY (a $499 value!)
Two Alignment Turn Plate Tables and A 6000LB Sliding Jack Included
Free Approach Ramps
Time-Tested Car Lift Model for 30 Years
Powder Coated Finish with Superior Corrosion Resistance

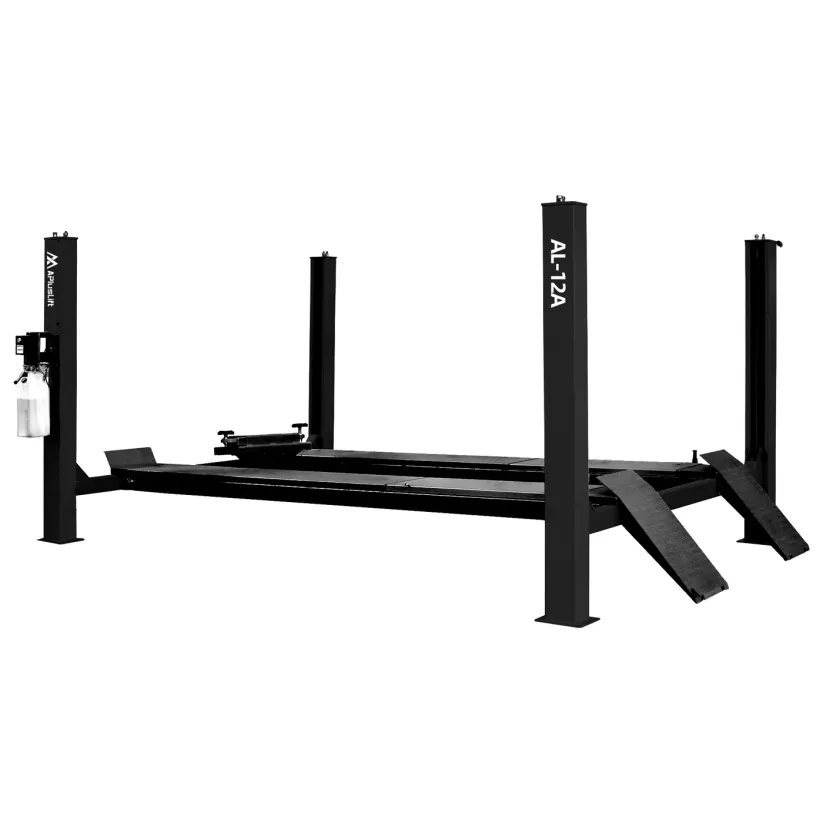

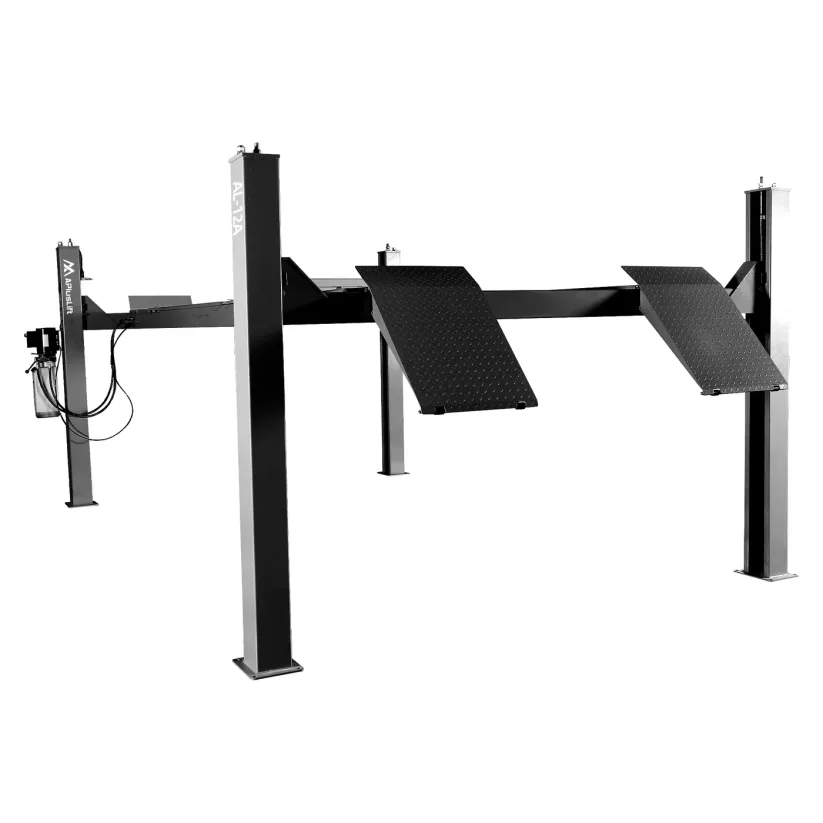

APlusLift AL-12A (HW-12S) 4-Post 12,000LB Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

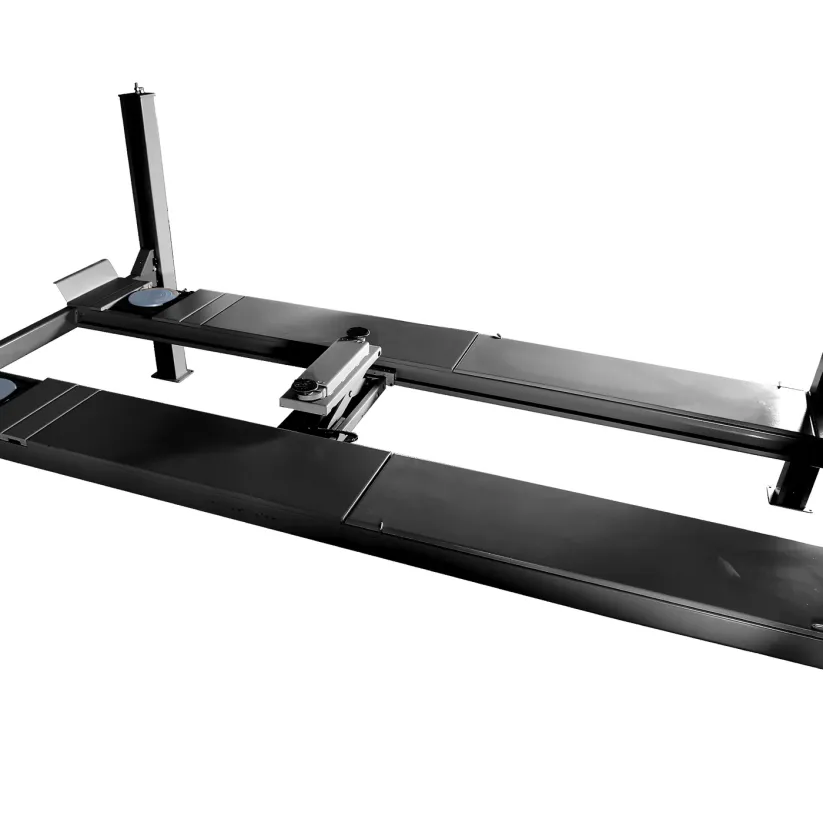

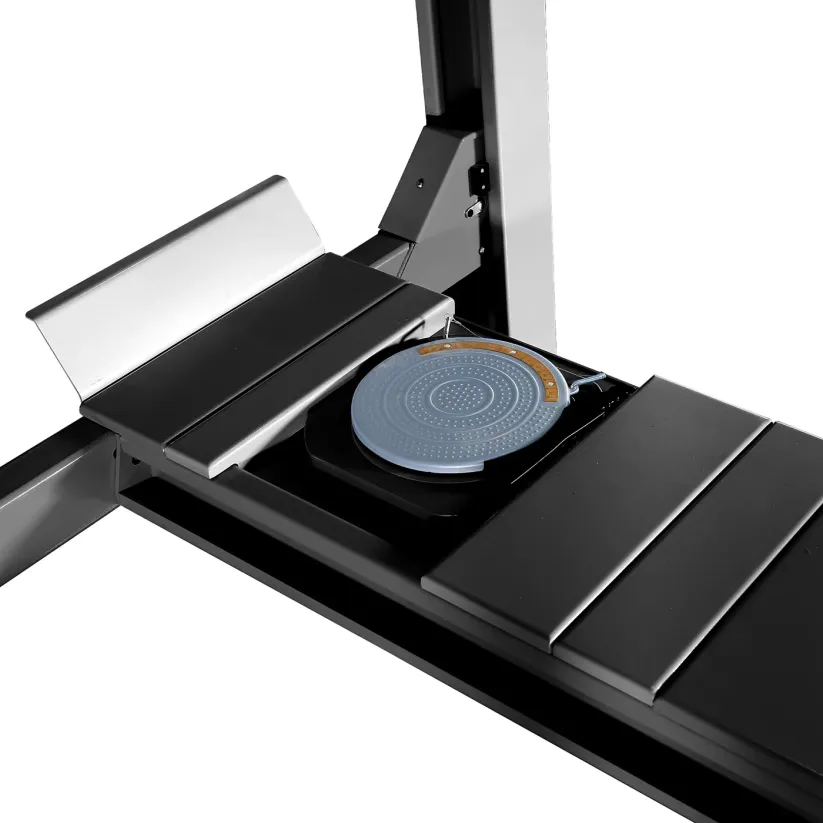

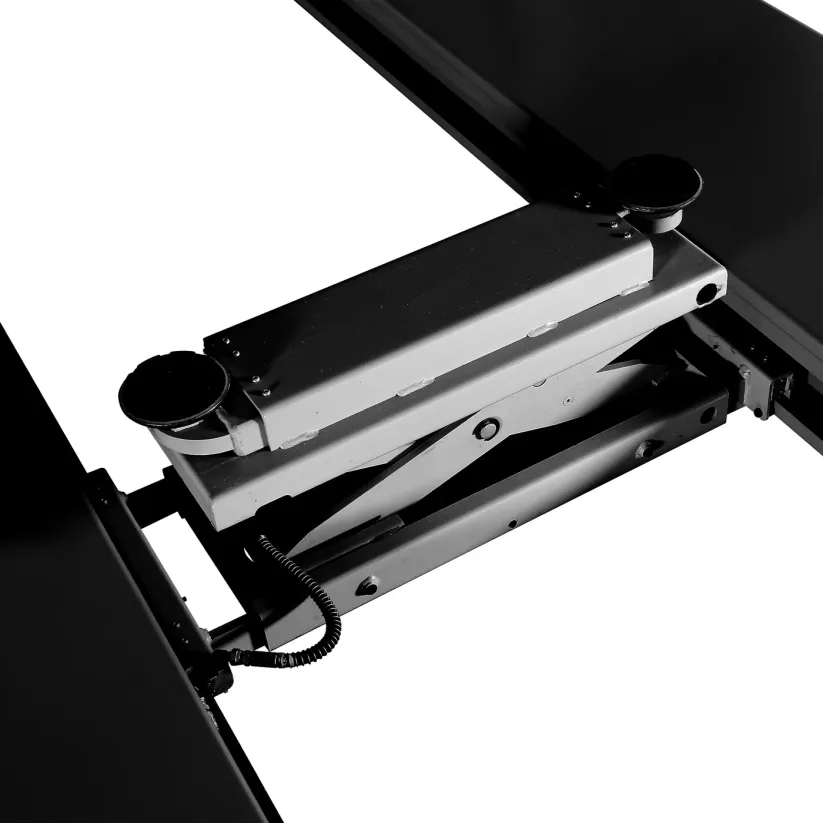

APlusLift AL-12A (HW-12S) 4-Post 12,000LB Lift package includes two alignment turn plate tables, one 6000LB sliding jack, and two approach ramps.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications and Features
- Installation Manual
- 3 Year (36 Month) Warranty
- Lifting Capacity: 12,000LB
- Usage: Parking/Storage/Service
- Air operated (pneumatic) safety lock release
- Powder Coated Finish with Superior Corrosion Resistance
- Two Alignment Turn Plate Tables, One 6000LB Slidng Jack, Two Approach Ramps Included
- Overall Length: 230"
- Overall Height: 87 1/2"
- Overall Width: 130"
- Lifting Height: 72"
- Clearance Under Runway: 67"
- Width between Posts: 113"
- Runway Size: 196"L x 23"W
- Width Between Runways: 34 1/2"
- Runway Gauge Steel: 6
- Lock Positions: 14
- Lifting Time: 60 seconds
- Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
- Concrete Thickness: 4"
- Shipping Weight: 3,300LB
- Shipping package size: 201"L x 28"W x 25"H
