HD-9 9,000-lb. Capacity Four-Post Lift – Heavy-Duty Parking, Storage & Service Solution
$ 2,158
$ 5,395
9,000-lb. Capacity for Maximizing Space and Productivity

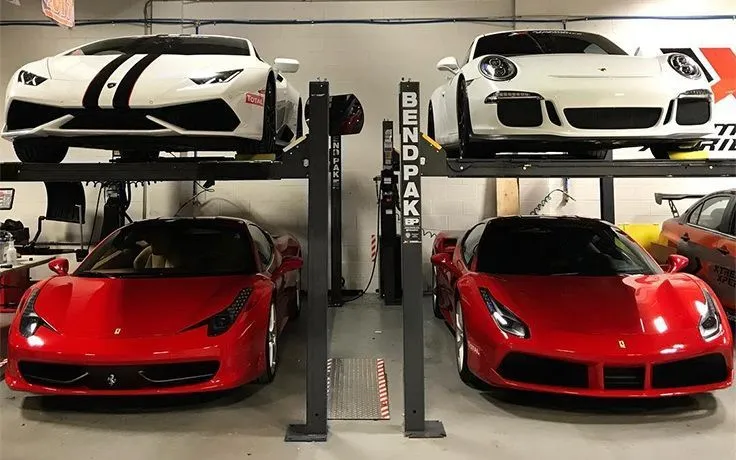

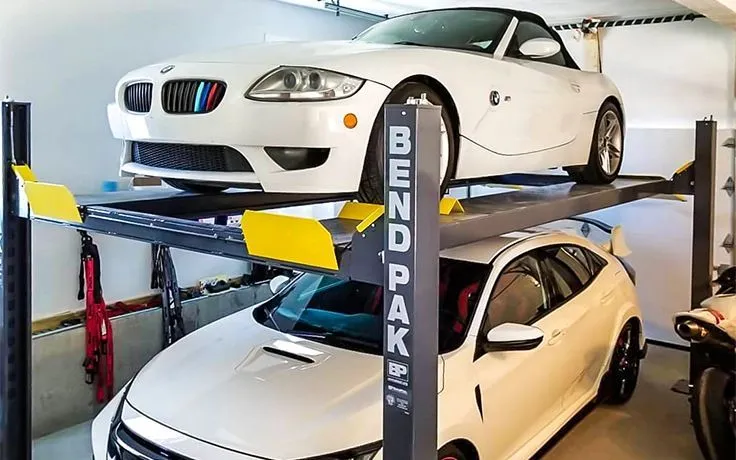

The BendPak HD-9 combines industrial-grade strength with adaptable design, perfect for professional shops, garages, or commercial storage. With a 75" max lifting height and freestanding installation, this lift transforms unused vertical space into secure parking for cars, trucks, ATVs, or boats—no special foundation required. Optional casters add mobility, while rugged engineering ensures decades of reliable service.
9,000-lb. Capacity / Freestanding Design / CE & ETL Certified / 45-Second Rise
KEY FEATURES & BENEFITS
9,000-lb. Capacity: Safely handle vehicles up to 4,500 lbs. per axle.
Space-Saving Footprint: Fits standard parking spaces (110.25" width) with removable ramps for drive-under clearance.
Rapid Operation: Reach full height (70" rise) in 45 seconds with a 220V electric/hydraulic system.
14 Locking Positions: Secure loads every 4" via push-button pneumatic safety release.

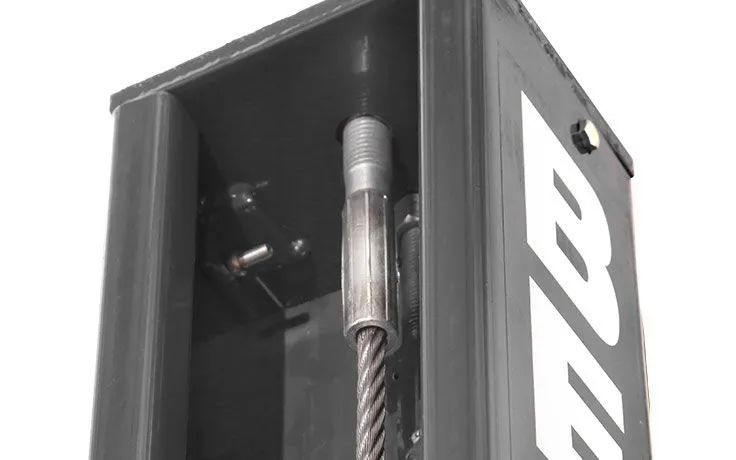

Dual-Hub Cable Sheaves: Reduce wear on cables and axles for extended durability.
Self-Lubricating Rollers & Enclosed Cables: Maintenance-free performance in harsh environments.

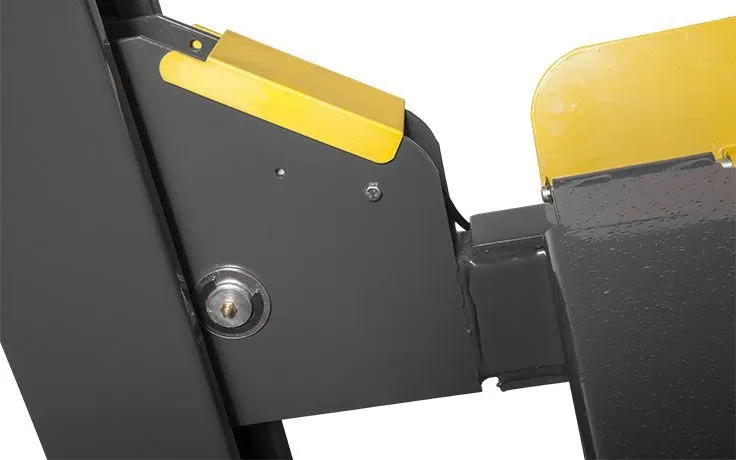

Anti-Sway Sliders & Backup Latches: Ensure stability and redundancy even under max load.
10-Step Powder Coat Finish: Resists corrosion, chemicals, and wear for lasting aesthetics.
- TECH SPECS
Motor: 220 VAC / 60 Hz / 1 Ph | Noise Level: 45 dB
Max Lifting Height: 75" (1,905 mm) | Min. Runway Height: 5" (127 mm)
Runway Dimensions: 158.25" L x 19" W | Drive-Thru Clearance: 86.5" (2,197 mm)
Locking System: 14 positions (4" spacing) | Cable Rating: 3/8" aircraft-grade
Shipping Weight: 1,616 lbs. (733 kg) | Air Supply Required: 30 PSI / 3 CFM
- WHY CHOOSE THE HD-9?
Freestanding Flexibility: Install anywhere—no concrete anchoring needed. Roll it outdoors with optional casters.

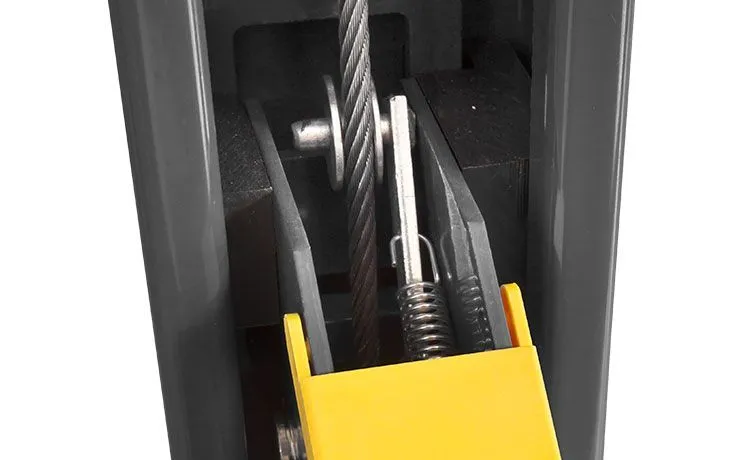

Pro-Grade Safety: Spring-loaded locks, anti-sway blocks, and independent slack-cable latches for failsafe operation.
Expandable Utility: Add drive-thru ramps, drip trays, solid decks, or RJ-45 rolling jacks (4,500-lb. capacity).
Low-Profile Ramps: Accommodate vehicles with minimal ground clearance for effortless loading.
- IDEAL FOR
Storing seasonal vehicles, boats, or equipment.
Servicing trucks, SUVs, or compact cars in tight spaces.
Shops needing a reliable secondary lift without sacrificing floor space.
- BACKED BY BENDPAK’S LEGACY
For over 40 years, BendPak has set the standard for automotive lifts. The HD-9 continues this tradition with robust steel construction, enclosed components, and a hydraulic cylinder engineered for leak-free performance. - MODEL: HD-9
STYLE: Standard-Width / Freestanding
CERTIFICATIONS: CE, ETL, EN 1493
