HD-9XW 9,000-lb. Capacity Standard Width, Extra-Tall Lift
$ 2,278
$ 5,695
Unlock Vertical Potential with a 9,000-lb. Storage & Service Beast

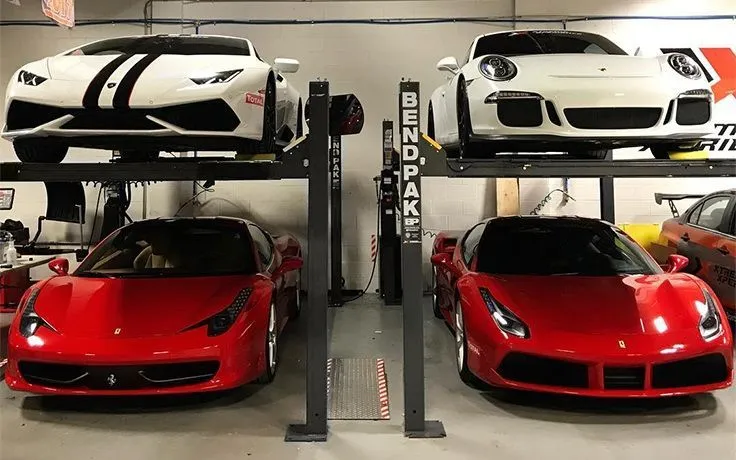

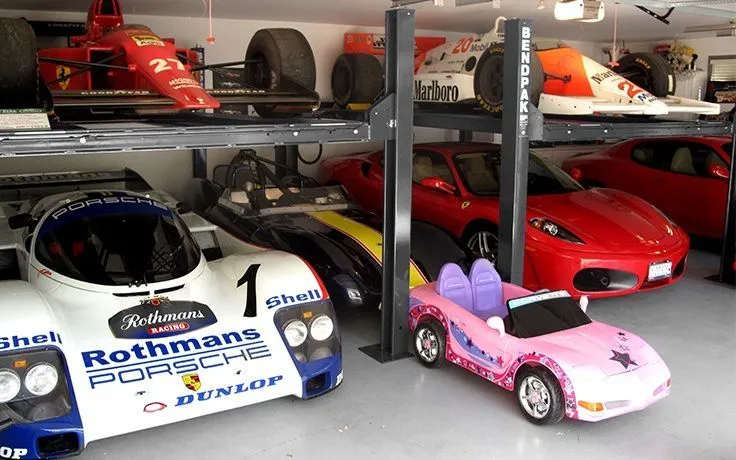

The BendPak HD-9XW redefines versatility, blending industrial-grade strength with space-smart design. Perfect for shops, garages, or commercial storage, this freestanding lift maximizes vertical space with an 86.5" max lifting height—ideal for storing vehicles, ATVs, boats, or doubling as a service lift. No special foundation required, and optional casters add mobility.
9,000-lb. Capacity / High-Rise Design / Freestanding / Commercial-Grade Durability
KEY FEATURES & BENEFITS
9,000-lb. Capacity: Safely handle vehicles up to 4,500 lbs. per axle.
High-Rise Performance: Lift to 86.5" for storage or detailed service work—even under low 8-foot ceilings.
Space-Optimized Footprint: Fits a standard parking space (110.25" width) with removable ramps for drive-under clearance.
Dual-Hub Cable Sheaves: Reduce wear on cables and axles for extended lifespan.
15 Locking Positions: Secure loads every 4" with push-button pneumatic safety release.
Industrial Hydraulics: Hidden single cylinder with abrasion-resistant seals and chrome-plated rod for leak-free reliability.

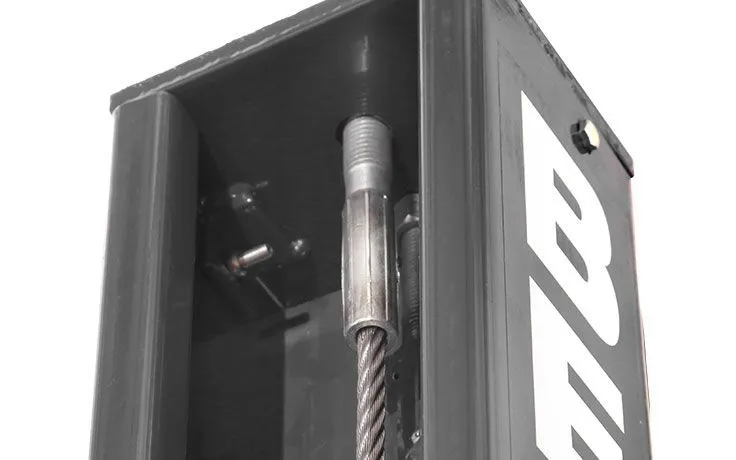

Commercial-Grade Build: Fully enclosed cables, 3/8" aircraft-grade wiring, and 10-step powder-coat finish for harsh environments.
ETL & CE Certified: Exceeds EN 1493 safety standards.
TECH SPECS
Motor: 220 VAC / 60 Hz / 1 Ph | Lifting Time: 50 seconds
Max Rise: 82" | Max Height: 86.5" | Lowered Height: 4.5"
Runway Dimensions: 188" L x 19" W | Overall Length: 224"
Locking Positions: 15 | Cable Rating: 14,400 lbs. each (640% safety margin)
Shipping Weight: 2,040 lbs. | Air Supply: 30 PSI / 3 CFM (required for safety locks)
- WHY THE HD-9XW DOMINATES

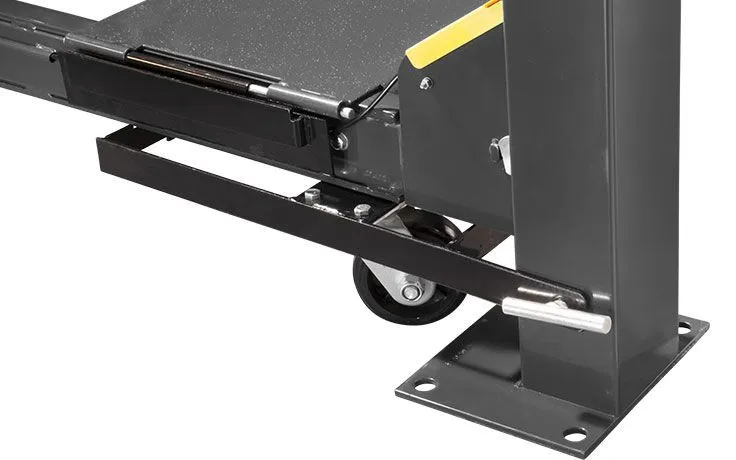

No-Fuss Installation: Freestanding design requires no concrete foundation. Add casters to roll it outdoors or between bays.
Pro-Level Safety: Automatic spring-loaded locks, anti-sway sliders, and backup slack-cable latches ensure failsafe operation.

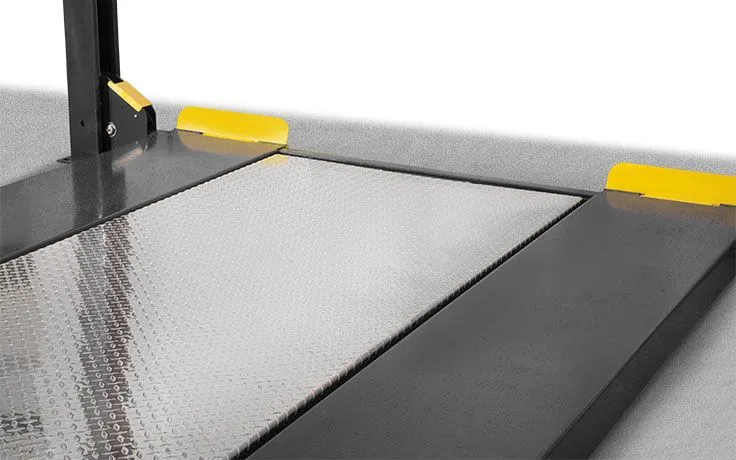

Expandable Utility: Optional drip trays, solid decks, drive-thru ramps, and RJ-45 rolling jacks adapt to any task.
BendPak’s 10-Step Powder Coat: Sandblasted, phosphate-washed, and baked at 400°F for chip-resistant, chemical-proof durability.
FOUR MODELS, ONE HD-SERIES LEGACY
The HD-9XW is the standard-width, high-rise variant. Need narrow configurations? Explore the HD-9ST (narrow) or HD-9STX (narrow + tall).
BUILT TO OUTLAST, BACKED BY BENDPAK
With over 40 years of innovation, BendPak equips the HD-9XW with a hidden hydraulic cylinder machined from C-1045/50 steel, self-lubricating rollers, and aircraft-grade components. Whether storing a classic car or servicing a truck, this lift is a legacy investment.
Elevate your space. Trust the HD-9XW.
MODEL: HD-9XW
STYLE: Standard-Width / High-Rise
CERTIFICATIONS: CE, ETL, EN 1493
